company profile

Guilin Seal Technology Co., Ltd. is a professional manufacturer engaged in the research, development, production, sale and service of Automatic Induction Sealers and other package equipment. Our people have more than 15 years' experience in the package equipment. Our main products include Induction Cap Sealing Machines, Filling Machines, Electronic Auto-counters, Labeling Machines and other package equipment for Automatic Production Lines. Our products are widely used in Pharmaceutical & Nutraceutical, Pesticides, Food & Dairy, Health & Beauty, Chemical and other manufacture industries. We conduct strict quality inspections on equipment according to ISO9001:2000. At present, our products are exported to America, Japan, South Korea, Vietnam, Tanzania and other countries. We will try our best to serve you and hope to become one of your friends and business partners.

Application Industry

Food ,Beverage ,Pharmaceuticals ,Cosmetics and Daily Care Products ,Non-alcoholic beverages ,Dairy ,Others ,Fruits and Vegetables ,Dairy ,Ready meals ,Frozen food ,Liquid food ,Others ,Medicines ,Health food ,Biological products ,Bulk drug/pharmaceutical adjuvant ,Others ,Cosmetics ,Personal care products ,Cleaning products ,Raw materials of daily chemical ,Others ,Packaging Machineries and Accessories ,Others

Main Products

First Packaging Machines
- Sealing Machines
Machines and equipment for manufacturing food, confectionery and baked products
Machines and equipment for pharmaceuticals and cosmetics production
Inkjet / Laser Printers / Bar Coding

Product Information

Product Category： Sealing Machines

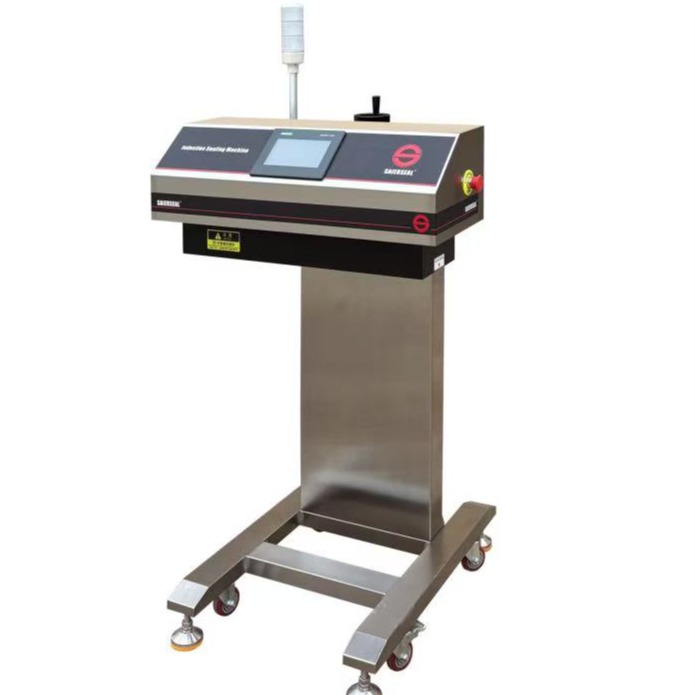

Induction Sealing Machine

This machine is used for bottle sealing to prevent tampering, keep the medicine fresh, prevent theft, and protect the medicine or powder from leakage during transportation. Cooling mode: Air cooled; Appearance design Fuselage material: 304 stainless steel 2.0; Structural characteristics Integrated structure (no cleaning dead corners, in line with GMP requirements), four wheel movement, four corners free positioning Overall dimension: 800*300*336mm(L * W * H) does not include the size of the lift support Machine weight:30Kg（(without support)） Sensor design Shell material Anti-magnetic thermal interference alloy Structural characteristics 5 Fan heat dissipation structure Sealing range: Suitable for bottle diameter 20-60mm/50-100mm/80-120mm (can be customized special sealing range) Sealing speed: ≥200 bottles/min (calculated by 20mm diameter) Circuit design Input power supply AC220V±10% Operating frequency: 50/60Hz Output power: ≤4000W（Adjustable power） Current range Static 3A, dynamic 16A Functional Features 1. The whole machine is designed in accordance with American standards, with pure imported core components and no cleaning dead corners. 2. The body is made of 304 stainless steel, with a protection level of IP40, meeting GMP requirements. 3. The sensor adopts a 6-coil design, significantly enhancing the magnetic heat intensity and the effective compatibility range for sealing. 4. Human-machine dialogue operation interface and programmable control system. (Configured for SR-6000SMAX model) 5. Digital circuit design, using imported chips and advanced algorithms, achieving multi-threaded high-speed parallel processing. 6. The bottle sealing position is adjusted by spiral sliding and lifting. 7. The whole machine has excellent anti-electromagnetic interference performance. 8. Fully enclosed module chips, reliable performance, and significantly extended equipment operation life. 9. Intelligent electrical protection system (overvoltage, overcurrent, overheating). 10. Precise control of magnetic heat intensity. 11. Built-in voltage stabilizing power supply, providing constant auxiliary power output. 12. Automatic sound and light alarm when the operation status is abnormal.
